SF6 Gas Automatic Circuit Recloser

SF6 Gas Automatic Circuit Recloser

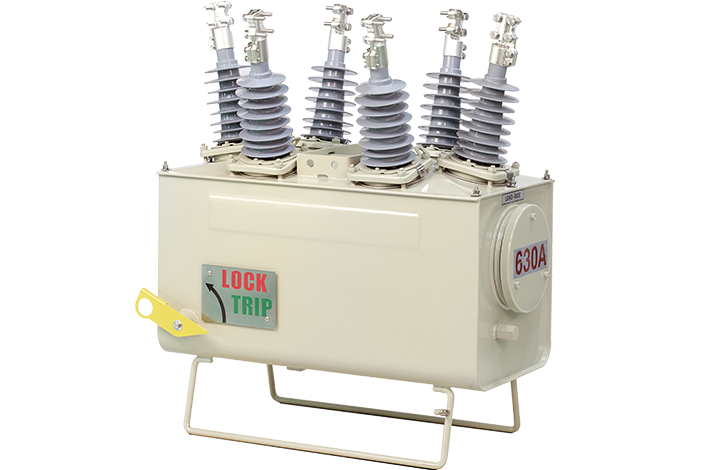

Entec's Three-Phase SF6 Gas Automatic Circuit Reclosers(EVR-1, EVR-2, EVR-3) are designed for the application in overhead lines and substations for voltage classes up to 15.5kV, 27kV, and 38kV.

The operating mechanism uses a permanent magnetic actuator that guarantees maintenance-free operation. The vacuum interrupters for arc quenching ensure high reliability.

The bushings are made of epoxy with silicone rubber housing. The Recloser tank and control cubicle are made of stainless steel, which have strong endurance against hot, humid, dusty, or corrosive environment.

The Recloser is supplied with complete microprocessor-based controller(ETR300-R or EVRC2A-NT) including metering, monitoring, recording, and communication functions.

The Recloser has been fully type tested by accredited laboratories such as KEMA, CESI or KERI according to the international standards ANSI C37.60 and IEEE 62271-111.

Magnetic Actuator
  • -
  • 10,000 times of operation guaranteed
  • -
  • Enhanced reliability by eliminating the mechanical latches
  • -
  • Maintenance free due to minimized moving components
  • -
  • Installation and operation at less cost
Installation Environment
  • -
  • Pole/Substation mounting available
  • -
  • All accessories included such as control power cable, mounting bracket etc.
  • -
  • Operating temperature: -40°C to 80°C
Other Technical Features
  • -
  • RVD : Resistive Voltage Divider (1%)
    CVD : Capacitive Voltage Divider (2.5%)
  • -
  • Manual trip operation available
  • -
  • Hundreds of open/close operations with fully charged battery(18AH/30HOURS) in case of AC supply input loss
  • -
  • CT ratio covers full protection range
Electrical ratings
Description
Rated maximum voltage [kV] 15.5 27 38
Rated current [A] 630 630 630/800
Frequency [Hz] 50 / 60 50 / 60 50 / 60
Short circuit breaking current [kA] 12.5 12.5 12.5 / 16
Short time withstand current, 3sec [kA] 12.5 12.5 12.5 / 16
Short circuit making current [kA peak] 32.5 32.5 32.5 / 40
Cable charging breaking current [A] 5 5 5
Transformer magnetizing breaking current [A] 22 22 22 / 28
Basic impulse withstand voltage [kV crest] 110 150 170
Power frequency withstand voltage, dry [kV] 50 60 70
Power frequency withstand voltage, wet [kV] 45 50 / 60 60 / 70
Control Operating voltage AC 110V, 220V external sources
Ambient temperature -25 to 70 °C
Degree of protection IP 55
Maximum operations 10,000 times
International standard ANSI 37.60, IEC 62271-111

* Other ratings is available upon request.
* ENTEC reserves the right to change the design and specification without notice.

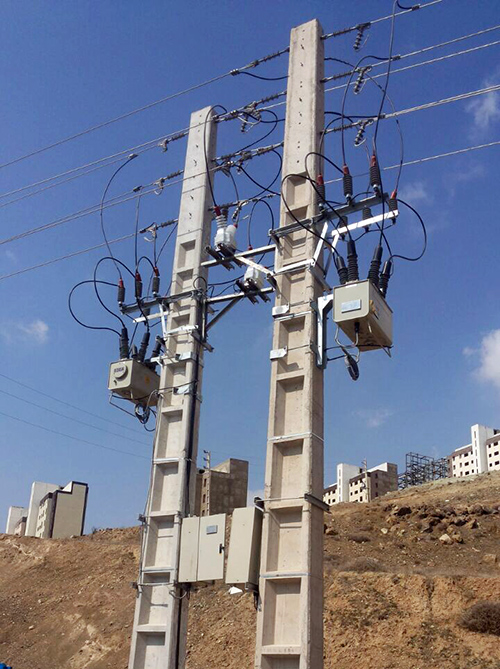

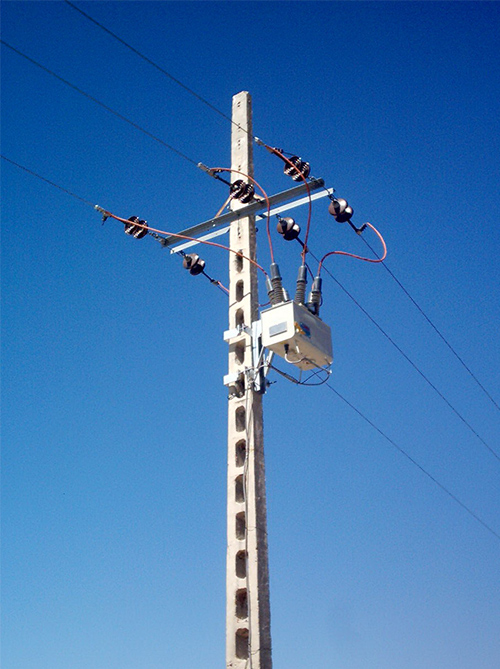

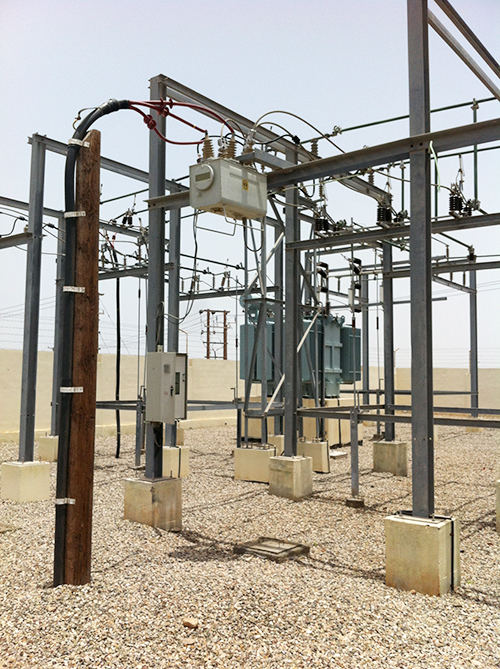

Reference project
