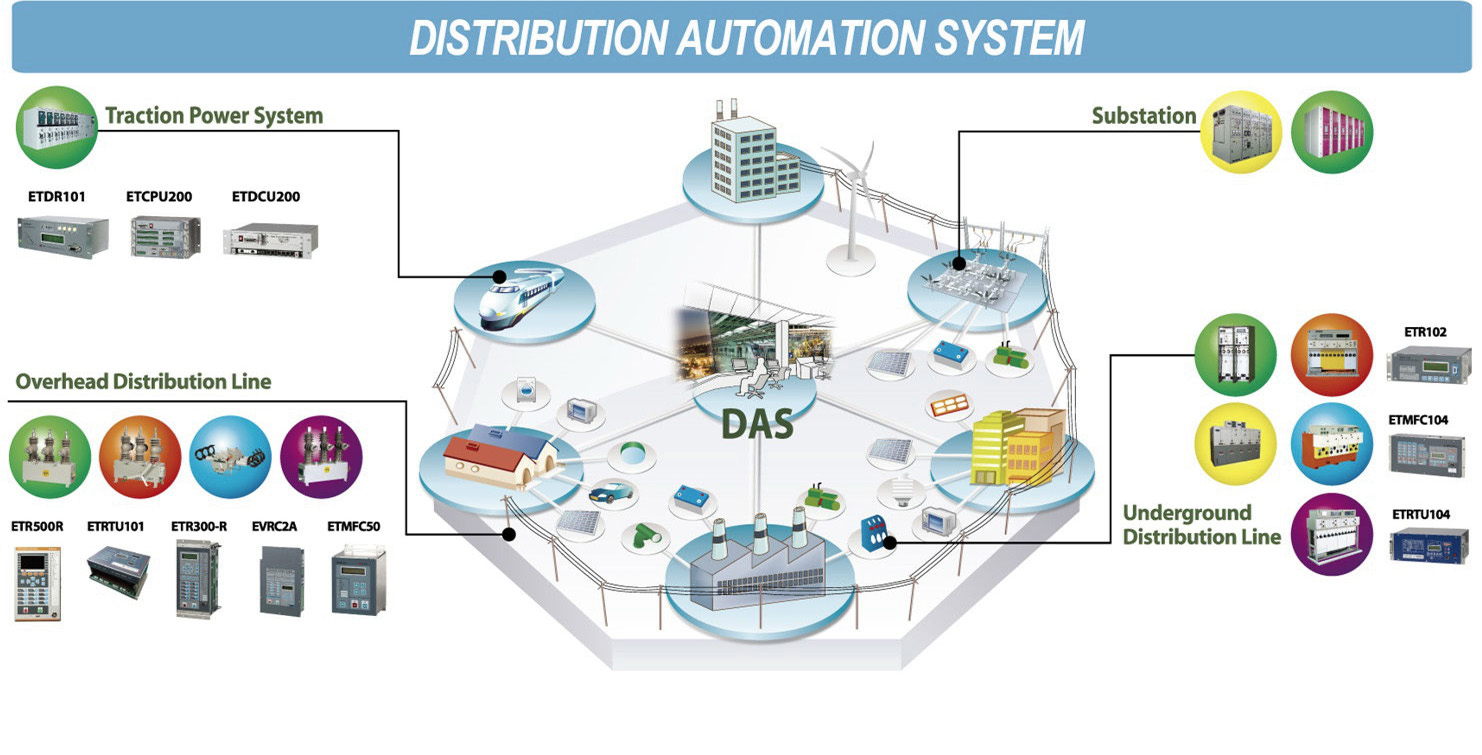

DISTRIBUITION AUTOMATION SYSTEM

ARGOS

ARGOS, a distribution automation system developed by Entec, has monitoring, control, alarm processing, recording, and reporting functions and can be applied to a variety of power facilities.
As an integrated monitoring and control system, it is designed for the remote control and protection under SCADA(Supervisory Control and Data Acquisition) system.
AROGS is compatible with the international communication standard widely used in the power transmission & distribution industry.

Availability
  • -
  • Easy system setting changes and information editing
  • -
  • Real-time field device check available by multiple monitors
  • -
  • Protocol modifiable
Flexibility
  • -
  • No Windows version restrictions
  • -
  • Environment setting changeable
Communication
  • -
  • DNP 3.0, IEC 60870, IEC 61850, MODBUS
  • -
  • Modem, Fiber Optic, Ethernet, RS 422/485

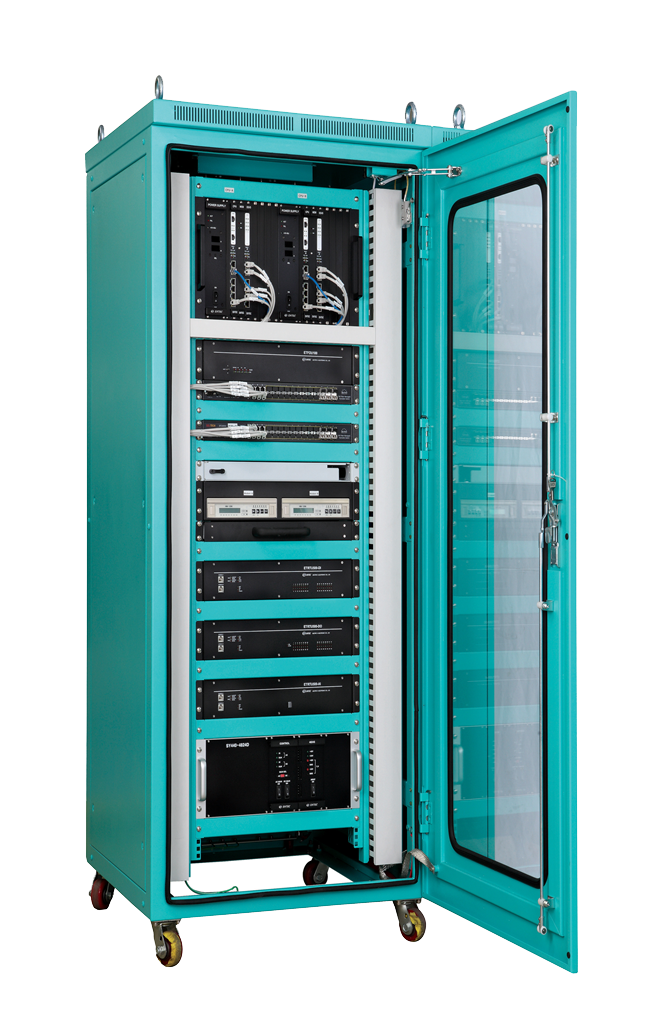

ETRTU 3000

ETRTU 3000

  • -
  • Remote Terminal Unit(RTU) for application in a substation, subway, railway, and etc.
  • -
  • Transmission of measurement, status, control data to SCADA system through various communication interfaces and protocols
  • -
  • Reliability of redundant system configuration
  • -
  • Communication
    ㆍDNP 3.0, IEC60870, IEC61850, MODBUS
    ㆍModem, Fiber optic, Ethernet, RS422/485
    ㆍTotal 7,000 DI / DO / AI points available
  • -
  • Remote monitoring, control and measurement
    ㆍCircuit breaker(including LS type) opening and closing
    ㆍRelay operating status
    ㆍSequence Of Event (SOE)
    ㆍClosed / Open (ON / OFF) control
    ㆍMeasurement of voltage, current, effective / reactive power, frequency, power factor
  • -
  • Simulator
    ㆍSystem resource monitoring
    ㆍSystem function test
    ㆍCreation, modification, archiving, management, and storage of databases
    ㆍSystem configuration management
    ㆍSystem and device history management
